Why Is It Possible for Buses to Change Their Height? A Comprehensive Examination of the Air Suspension System

    You might have noticed a small detail during our daily bus rides: the body of the bus gradually lowers when it stops at a station, making it simpler for passengers to board and disembark. A hiss of air being released may also be audible. The Air Suspension System, a commonly used system in passenger cars, enables buses to instantly change their height.

What is an air suspension system?
    An air suspension system uses compressed air to control the height of the car's chassis. Although air suspension offers greater comfort, stability, and adjustability than coil springs or traditional steel leaf springs, it is more complex.
Heavy-duty trucks, long-distance buses, and tractors that needed high driving stability were the first vehicles to use air suspension technology. Due to advancements in technology and decreased manufacturing costs, this system is now standard on the majority of buses.

Air Suspension System Components
The following essential elements usually make up a full air suspension system:

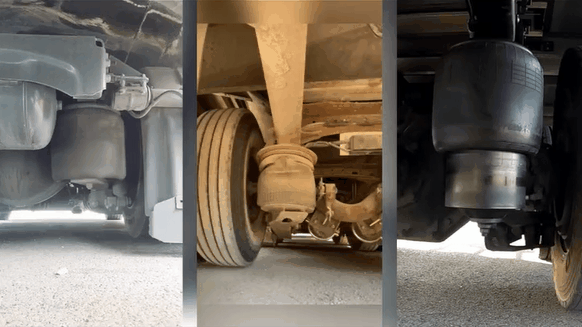

    Air Spring: The system's main component, a retractable rubber airbag, supports the vehicle's body and reduces vibrations.
Compressed air is stored in an air reservoir to guarantee a sufficient supply when required.
External air is compressed by the air compressor and sent to the reservoir.
    ECU and Sensors: To regulate air inflation or deflation, track real-time data such as vehicle height and road conditions.
Together with the air springs, the control arms and shock absorbers preserve wheel alignment and reduce vibrations.

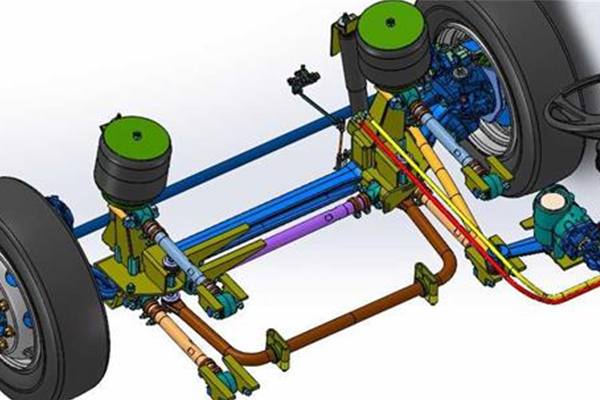

The structure and operation of the system
   In my view, an air suspension system's logic is understandable and controllable, despite its intricate working principle.

    For instance, height sensors positioned between the axle and the chassis continuously track variations in the gap when a bus travels on uneven roads. The **Electronic Control Unit (ECU)** receives these height signals digitally and uses them to process information about the vehicle's speed, load, and driving mode.The ECU commands solenoid valves to activate, inflating or deflating the corresponding air springs, if the vehicle's posture deviates from the predetermined standard:
The system raises the body by inflating the air springs from the reservoir if the vehicle is overly loaded and the chassis is too low.
The system lowers the chassis by deflating air during high-speed driving, which increases stability and lowers drag.
    With a system response time of only tens of microseconds, the entire process is completely automated. It ensures a safe and comfortable driving experience by reacting fast to even the smallest movements of each wheel.

Structure and Upkeep of Air Springs (Also Procurement Advice)

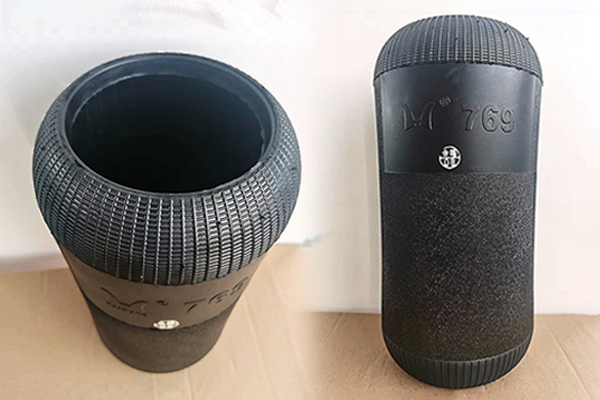

    In essence, an air spring is a "gasbag spring" composed of fiber-reinforced materials and rubber that has a hollow cavity to store compressed air. Its rubber composition limits its resistance to punctures. It may leak air if pierced by sharp objects, which could lead to chassis imbalance. Aging and cracking can also result from prolonged exposure to high temperatures or oil contamination.

Maintenance Advice:
Every six to twelve months, check airbags for damage or leaks.
Every two to three years, replace the air springs.

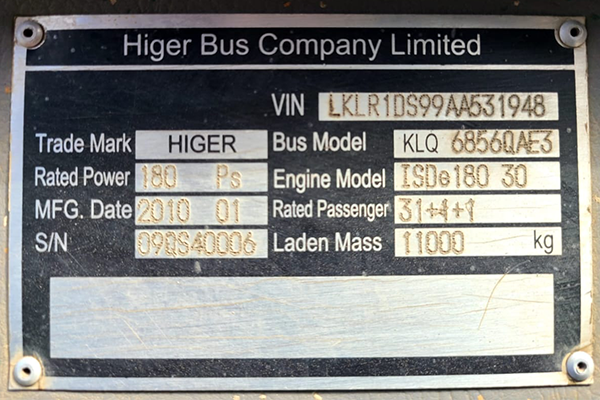

We provide a large selection of stable-quality air springs, reservoirs, height valves, and air fittings that are compatible with different Chinese bus brands and ideal for long-term fleet operations or bus repair shops. Simply send us a picture of the car's nameplate or chassis code via WhatsApp if you're not sure of the model, and we'll help match and provide actual product photos.

Useful FAQ
Q1: How can air spring models be matched?
A: Usually, the bus brand, chassis number, or spring height and diameter are used to match models. If you're not sure, send us a picture through WhatsApp, and we'll give you prompt advice based on actual product photos.

Q2: Where can I buy top-notch air suspension parts?
A: We regularly export to South America, Southeast Asia, and the Middle East, and we keep a sizable inventory for wholesale and mixed-batch orders. Our logistics provide both OEM and original parts options and cover major ports. For the most recent catalog and prices, get in touch with us.

To add our WhatsApp for free model-matching services and product lists, click here:
This link: https://wa.me/8613938427131
In summary: Select the Proper Elements for Easy Operations
    As a supplier of bus components, we place equal emphasis on meeting our clients' practical maintenance needs and product quality. Despite the technological advancements of air suspension systems, long-term, stable operation is ensured by careful component selection and routine maintenance.
